Settings

Most settings are configurable from the device's built-in web settings page — no YAML or reflashing needed. See Web Settings for how to open it, or go to the device in Home Assistant under Settings → Devices & Services → ESPHome and click Visit.

The web settings page runs on the device's ESPHome web server on port 80. It uses the project's hosted web UI bundle, so the device needs internet access the first time the browser loads the page. On the 4" ESP32-S3 display, opening the web settings page also shows a Web settings active screen on the device while the browser is connected.

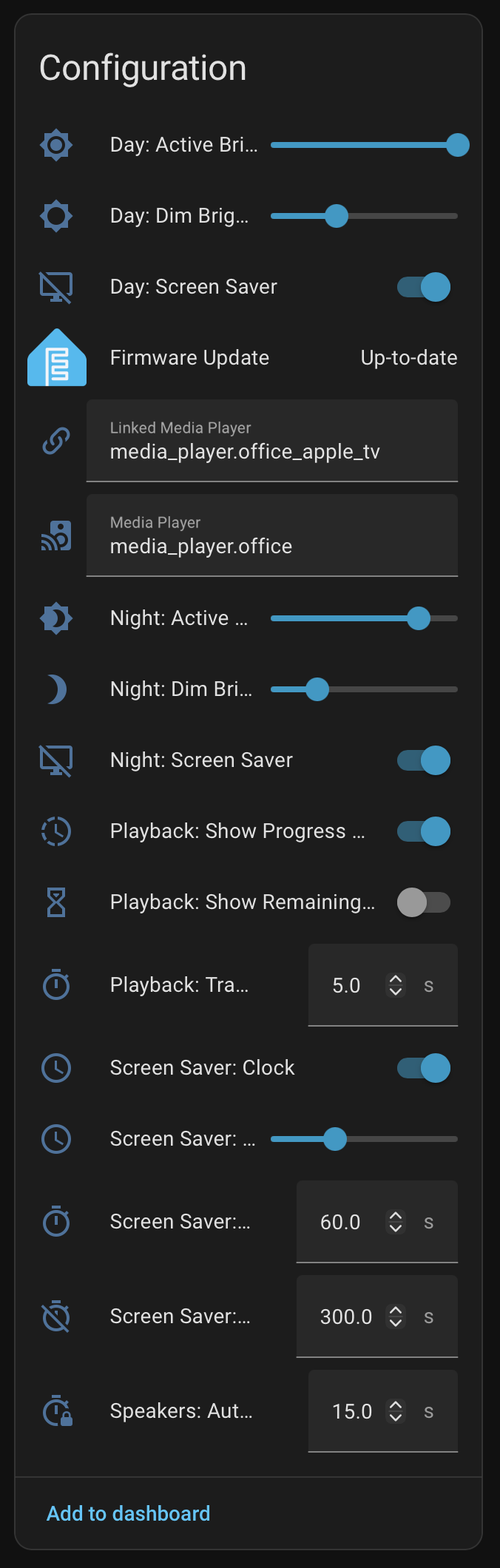

Some configuration entities may also appear on the Home Assistant device page, depending on the device model, but the web settings page is the main place to configure current firmware.

Media Player

Setting	Description
Media Player	The primary media_player entity to control, for example media_player.living_room_speaker. Saving a valid entity may reboot the device so the Home Assistant subscription is refreshed.

Advanced

Setting	Description
Linked Media Player	Optional secondary media_player entity used when the main speaker switches to a TV or Line-in source. Leave empty to disable. Saving a valid entity may reboot the device so the Home Assistant subscription is refreshed.

Playback

Setting	Description
Track Clock	On shows time remaining; off shows the track length. Tap the time label on the device to toggle this at any time.
Show Progress Bar	Shows or hides the playback progress bar.
Auto-Show Track Info	Shows track title and artist automatically when new playback information arrives. Turn this off to keep square screens focused on artwork and the progress bar; tap the screen to show or hide the info manually. Shown on the ESP32-S3 4848S040 and ESP32-P4 86 Panel.
Track Info Duration	How long track info stays visible after artwork loads or playback starts. 0 means it does not auto-show on a new track. Shown on the ESP32-S3 4848S040 and ESP32-P4 86 Panel.

Volume

Setting	Description
Speaker Panel Auto-Close	Turns automatic closing of the volume/speaker panel on or off. Default: on.
Timer	Time without touch interaction before the speaker panel automatically closes and returns to the now-playing view. Options: 5 seconds, 10 seconds, 20 seconds, 30 seconds, or 1 minute. Default: 10 seconds.

Idle Screen

Setting	Description
Dim when idle	Turns paused idle dimming on or off.
Dim After	Time after playback pauses before the screen dims. Options: 5 seconds, 10 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, or 10 minutes.
Day Dimmed Brightness	Brightness after the paused dimming timer during the day.
Night Dimmed Brightness	Brightness after the paused dimming timer at night.

Screen Saver

The browser Settings tab groups screen saver controls into idle screen dimming, screen saver timing, and night schedule behavior. See Screen Saver for the full behavior details.

Setting	Description
Screen Saver	Turns the clock/off screen saver step on or off. When off, the browser hides the screen saver options.
Start Screen Saver After	Time after dimming before the idle action runs. Options: 10 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.
Daytime Screen Saver	What happens during the day: Clock, Screen Off, or Disabled.
Day Clock Brightness	Backlight level for the daytime clock screen saver. Shown when the daytime action is Clock.
Evening Screen Saver	What happens in the evening: Clock, Screen Off, or Disabled.
Evening Clock Brightness	Backlight level for the evening clock screen saver. Shown when the evening action is Clock.

Night Schedule

Setting	Description
Schedule Screen Off	Turns the daily scheduled screen-off behavior on or off.
On Time	Hour when the screen becomes available again.
Off Time	Hour when the screen turns off for the schedule.
When Woken, Idle Time To Screen Off	How long a temporary touch wake lasts during scheduled off hours.

Device

The browser Device tab contains clock settings, day/night source, active screen brightness, screen tone, supported rotation controls, and firmware update controls.

Clock

Setting	Description
Clock Format	Display the clock screen saver in 24-hour or 12-hour format. The 12-hour format omits AM/PM so the large clock still fits and can drift for burn-in prevention. Defaults to 24-hour.
Timezone	IANA-style timezone for the clock and scheduled screen-off controls. The browser shows the current GMT offset. Defaults to UTC.

Day/Night

Setting	Description
Day/Night Source	Optional binary_sensor or input_boolean entity to control day/night mode (on = day, off = night). Leave empty to use sun.sun (default). See Screen Saver.

Screen Brightness

Setting	Description
Day Active Brightness	Screen brightness during active use in daytime mode. Default: 100%.
Night Active Brightness	Screen brightness during active use in night mode. Default: 80%.

Screen Tone ESP32-P4 only

Shifts album art toward warmer colors for a more comfortable viewing experience, especially at night. Separate day and night sliders follow the same day/night detection used by screen brightness. The tint updates instantly without reloading the image.

Setting	Description
Day Screen Warmth	Warmth applied to album art during the day. 0% = no tint, 100% = maximum warmth. Default: 30%.
Night Screen Warmth	Warmth applied to album art at night. 0% = no tint, 100% = maximum warmth. Default: 60%.

Rotation supported P4 panels

Setting	Description
Screen Rotation	Rotation control shown only on devices that support changing orientation from the browser UI. Options: 0, 90, 180, and 270.

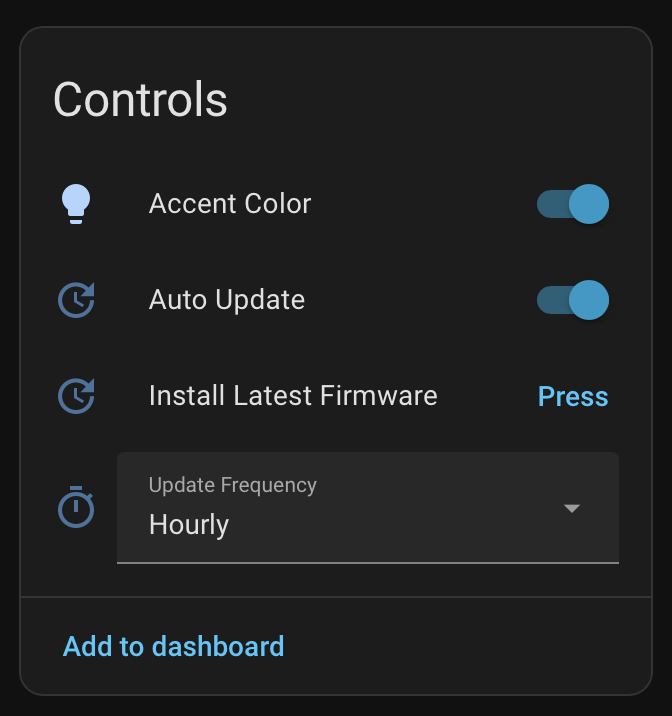

Firmware

Setting	Description
Check for Update	Checks public releases without installing. The same browser button changes to Install Update after a newer version is found.
Install Update	Installs the checked update when one is available.
Auto Update	When enabled, firmware updates are installed automatically when detected. Default: on.
Update Frequency	How often the device checks for updates: Hourly, Daily (default), or Weekly. Hidden when Auto Update is off.

See Firmware Updates for full details.
